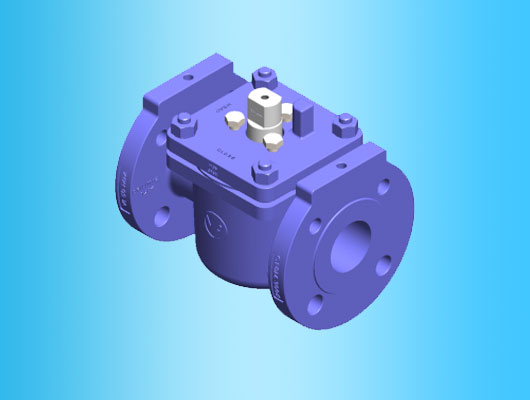

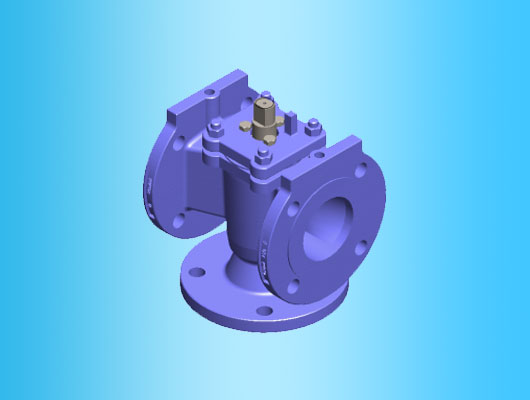

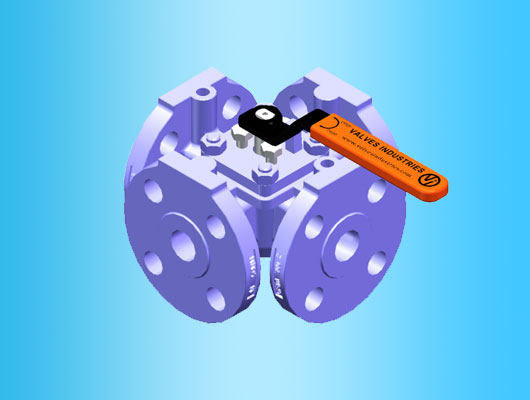

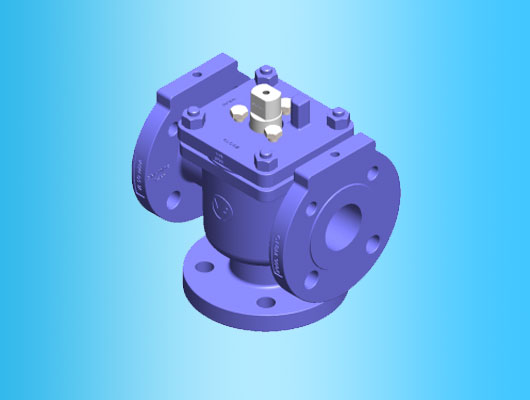

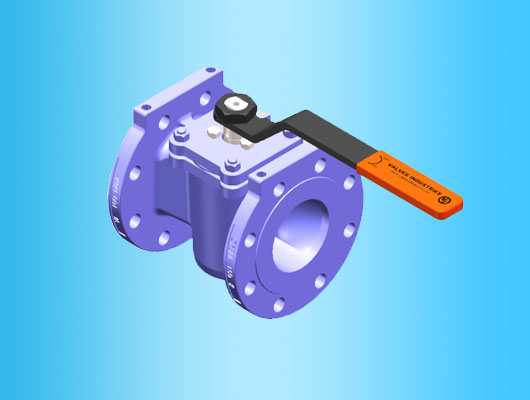

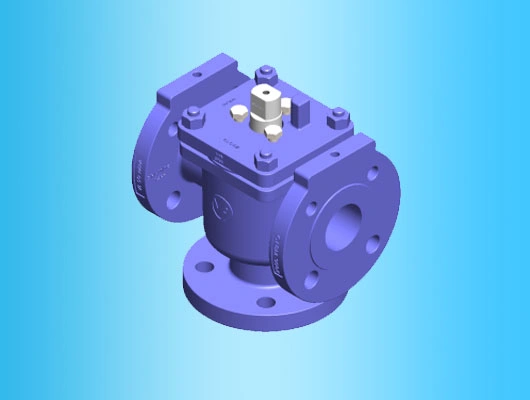

Sleeved plug valves are non-lubricated quarter-turn valves that achieve sealing through the use of a compressible sleeve as a sealing member. In many applications they operate virtually maintenance free for decades. This valves are suitable for various applications like - Vacuum applications, Abrasive applications, Throttling applications, Applications where you need valves with heating i.e. Jacketed Valves.
Valves Industries, offers a wide range of Sleeved plug valves to meet your needs. Sizes range from 1/2" to 14" and end connections include screwed, weld, flange.
| DESIGN STANDARD | BS 5353 |
|---|---|
| TESTING STANDARD | BS EN 12266-1 |
| M.O.C. | WCB / CF8 / CF8M / ALLOY-20 / NICKEL / DUPLEX STEEL / HAST-B / HAST-C & OTHER ALLOYS. |
| END CONNECTION | FLANGED, SCREWED, SOCKET WELD, BUTT WELD |
| OPERATION | HAND LEVER / WRENCH / GEAR / ACTUATOR |
| PRESSURE RATING | SIZE RANGE | FACE to FACE |
|---|---|---|
| 150# | 15 mm to 350 mm | ANSI B 16.10 |
| 300# | 15 mm to 300 mm | ANSI B 16.10 |
| 600# | 15 mm to 100 mm | ANSI B 16.10 |
| 600# SCREWED / SW | 15 mm to 50 mm | ANSI B 16.11 |
| PN40 | 15 mm to 150 mm | DIN 3202 F1 |
| Options | Partially Jacketed, Fully Jacketed, Sampling V PORT, Cage Control | |
| PRESSURE RATING | SIZE RANGE | FACE to FACE |
|---|---|---|
| 150# | 15 mm to 350 mm | ANSI B 16.10 |
| 300# | 15 mm to 150 mm | ANSI B 16.10 |
| 600# | 15 mm to 100 mm | ANSI B 16.10 |
| PN40 | 15 mm to 150 mm | DIN 3202 F1 |
| Options | Partially Jacketed, Fully Jacketed, V PORT | |
| PRESSURE RATING | SIZE RANGE | FACE to FACE |
|---|---|---|
| 300# | 25 mm to 150 mm | ANSI B 16.10 |
| PRESSURE RATING | SIZE RANGE | FACE to FACE |
|---|---|---|
| 300# | 15 mm to 150 mm | ANSI B 16.10 |
| Options | Partially Jacketed, Fully Jacketed, Sampling V PORT, Cage Control |
|
| PRESSURE RATING | SIZE RANGE | FACE to FACE |
|---|---|---|
| 300# | 15 mm to 150 mm | ANSI B 16.10 |
| Options | Partially Jacketed, Fully Jacketed, Sampling V PORT, Cage Control | |
