Ball Valves - 2 Way, 3 Way, 4 Way, Flush Bottom
Ball valve is a form of quarter-turn valve. It is open when the ball's bore is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.
Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of use. These qualities make them an excellent choice for shutoff and control applications.
Valves Industries, offers a wide range of ball valves to meet your needs. Sizes range from 1/2" to 10" and end connections include screwed, weld, flange.
BALL VALVES – 2 Way, 3 Way, 4 Way, Flush Bottom (Wafer Design)
| DESIGN STANDARD | BS EN 17292 : 2004 |
|---|---|
| TESTING STANDARD | BS EN 12266-1 |
| M.O.C. | WCB / CF8 / CF8M / ALLOY-20 / NICKEL / DUPLEX STEEL / HAST-B / HAST-C & OTHER ALLOYS. |
| END CONNECTION | FLANGED, SCREWED, SOCKET WELD, BUTT WELD |
| OPERATION | HAND LEVER / WRENCH / GEAR / ACTUATOR |

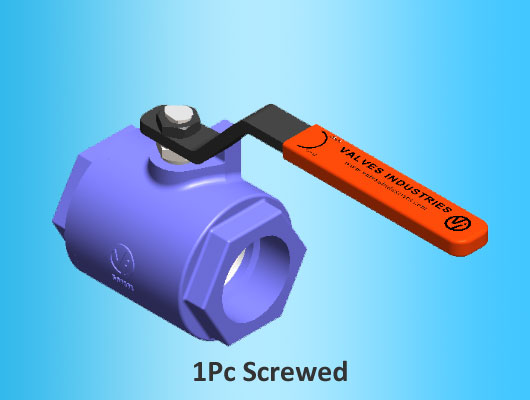

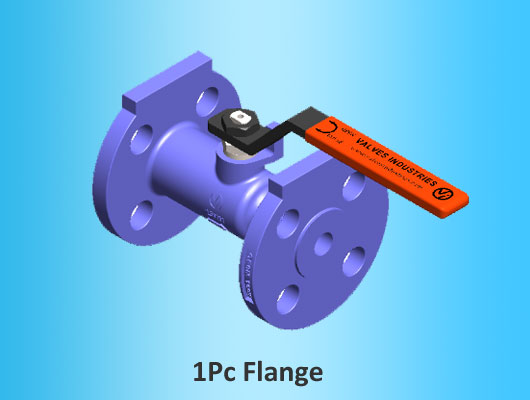

2 WAY – BALL VALVE – 1Pc design Full Bore Screwed & Flanged
| PRESSURE RATING | SIZE RANGE | FACE to FACE |
|---|---|---|
| 150# - Flange | 15 mm to 150 mm | ANSI B 16.10 |
| 150# - Screwed | 15 mm to 80 mm | ANSI B 16.11 |
| Options | Partially Jacketed, Fully Jacketed, “V” Port, Cavity Free | |

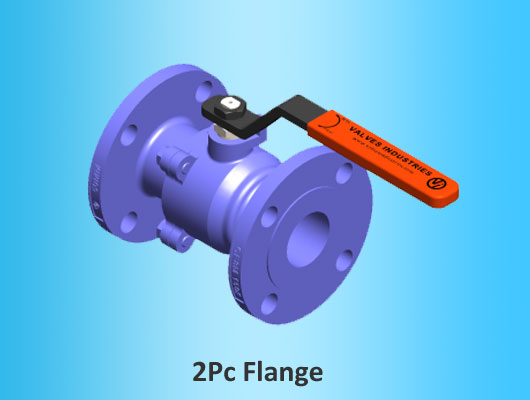

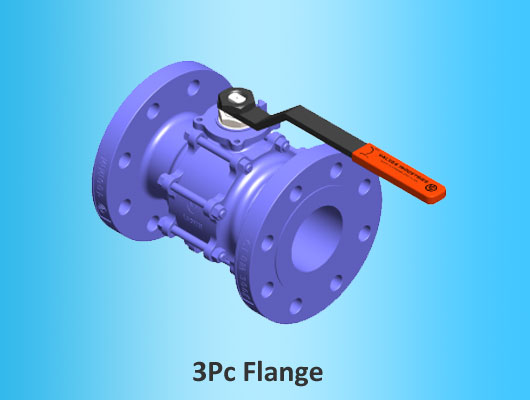

2 Way – Ball Valve Flagend – 2Pc / 3Pc Design Full Bore
| PRESSURE RATING | SIZE RANGE | FACE to FACE |
|---|---|---|
| 150# | 15 mm to 250 mm | ANSI B 16.10 |
| 300# | 15 mm to 150 mm | ANSI B 16.10 |
| Options | "V" Port, Cavity Free | |

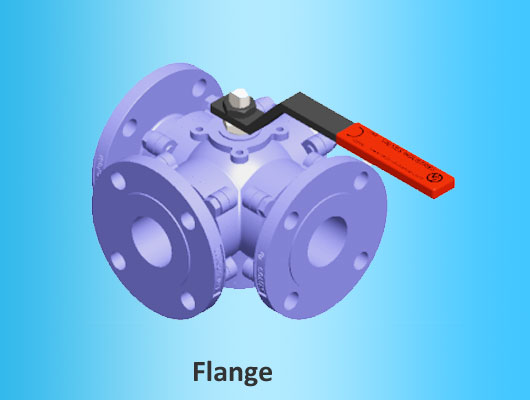

Ball Valve 3 WAY "L" Port or "T" Port (with 4 Seats)
| PRESSURE RATING | SIZE RANGE | FACE to FACE |
|---|---|---|
| 150# - Flange | 15 mm to 150 mm | ANSI B 16.10 |
| 300# - Flange | 15 mm to 150 mm | ANSI B 16.10 |
| 150# - Screwed | 15 mm to 50 mm | ANSI B 16.11 |

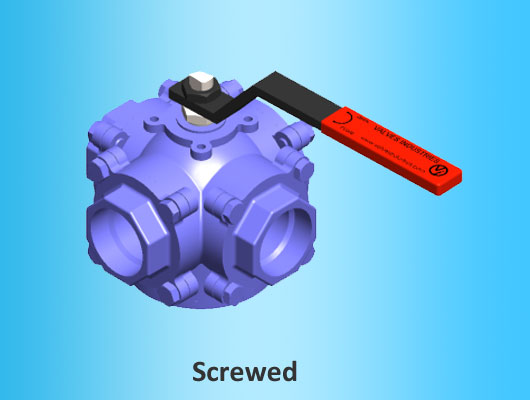

Ball Valve 4 WAY – “LL” Port (X Port) (with 4 Seats)
| PRESSURE RATING | SIZE RANGE | FACE to FACE |
|---|---|---|
| 150# - Flange | 25 mm to 150 mm | ANSI B 16.10 |
| 300# - Flange | 25 mm to 150 mm | ANSI B 16.10 |
| 300# - Screwed | 25 mm to 50 mm | ANSI B 16.11 |

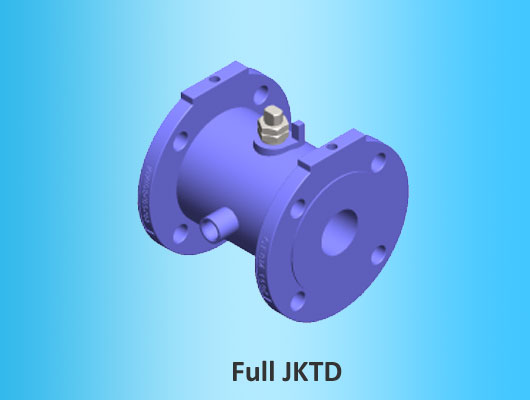

2 Way – Ball Valve Flagend – 1Pc Design Full Bore – Jacketed
| PRESSURE RATING | SIZE RANGE | FACE to FACE |
|---|---|---|
| 150# | 15 mm to 150 mm | ANSI B 16.10 |
| 300# | 15 mm to 150 mm | ANSI B 16.10 |
| Options | "V" Port, Cavity Free | |

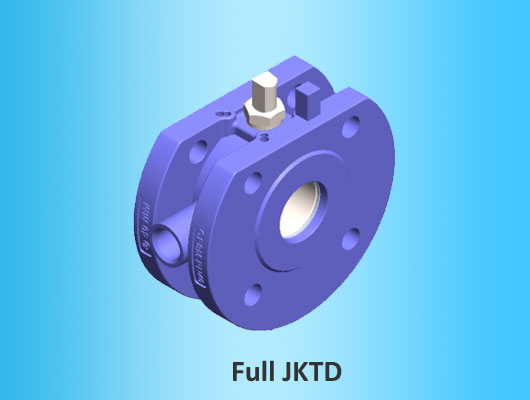

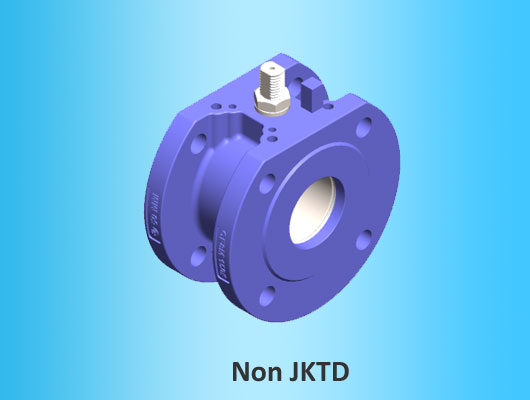

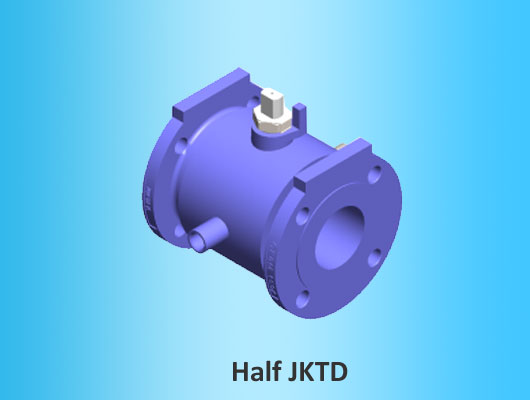

2 Way – Ball Valve Flagend – 1Pc Wafer Design
Full Bore – Half Or Full Jacketed
| PRESSURE RATING | SIZE RANGE | FACE to FACE |
|---|---|---|
| 150# | 25 mm to 150 mm | ANSI B 16.10 |
| Options | Actuated, “V” Port, Cavity Free< | |

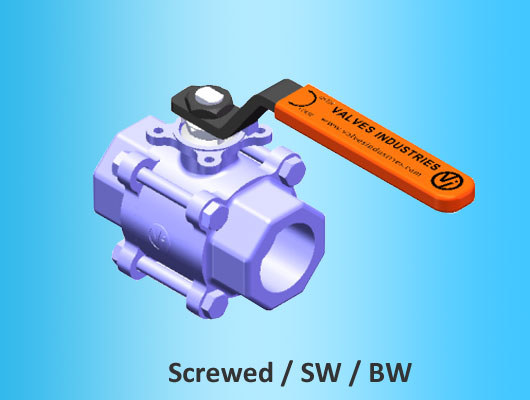

2 Way – Ball Valve Screwed / Sw – 3Pc Design Regular Bore
| PRESSURE RATING | SIZE RANGE | FACE to FACE |
|---|---|---|
| 800# | 15 mm to 50 mm | Manufacturer STD |
| Options | Cavity Free | |
