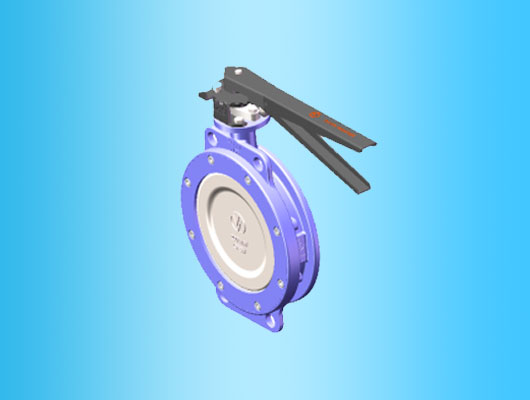

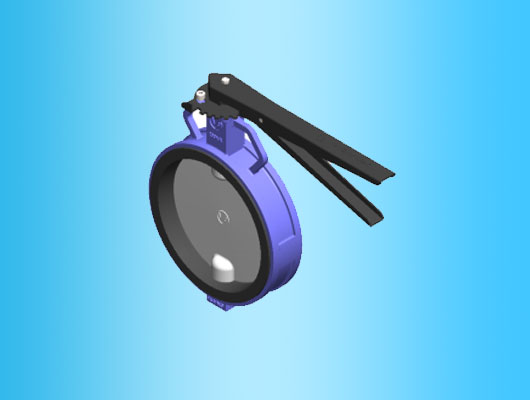

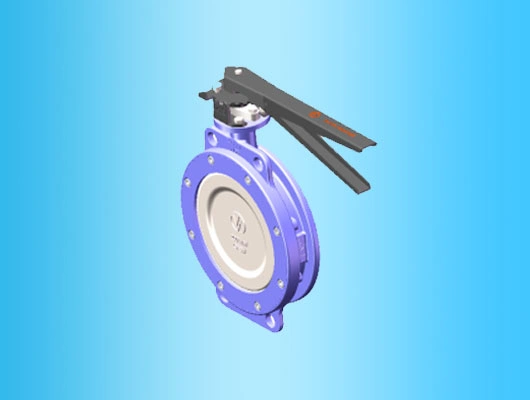

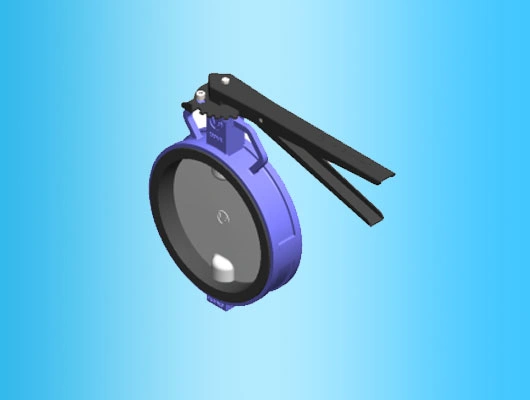

Butterfly valve Operation is similar to that of a ball valve, which allows for quick shut off. Butterfly valves are generally favored because they cost less than other valve designs, and are lighter in weight so they need less support. The disc is positioned in the center of the pipe. A rod passes through the disc to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, so it induces a pressure drop, even when open.
A butterfly valve is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally to throttle flow.
|DESIGN STANDARD||API 609|
|TESTING STANDARD||BS EN 12266-1|
|M.O.C.||WCB / CF8 / CF8M / ALLOY-20 / NICKLE / DUPLEX STEEL / HAST-B / HAST-C & OTHER ALLOYS.|
|OPERATION||HAND LEVER / GEAR / ACTUATOR|
|PRESSURE RATING||SIZE RANGE||FACE to FACE|
|PN 16||40 mm to 350 mm||API 609 category A|
